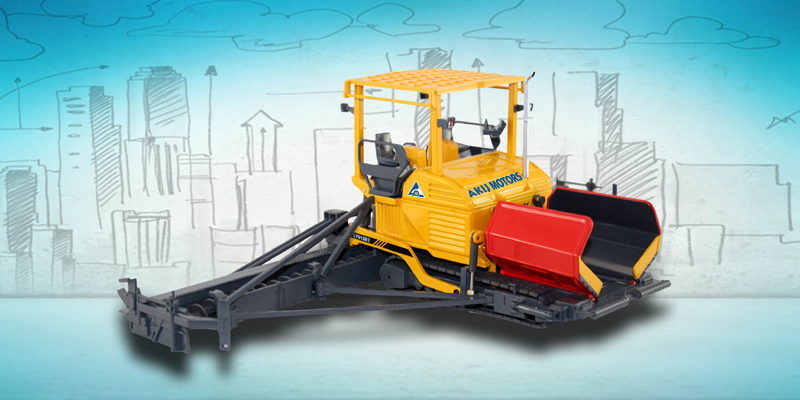

Concrete Road Paver

Basic paving width	m	2.5
Max. paving width	m	6.0/7.0
Max. paving thickness	mm	300
Paving speed	m/min	0～18
Travel speed	km/h	0～18
Theoretical Productivity	t/h	400
Hopper Capacity	t	13
Gradeability	%	20
Pavement evenness	mm/3m	3
Transverse leveling accuracy	%	±0.03
Centre crown ratio	%	0～+3
Engine model		D4114ZG2B
Engine power	kw	100
Engine speed	r/min	2400
Fuel tank capacity	L	170
Machine weight	t	15.3～19
Dimension	mm	6096X2580X3832
Auger speed	r/min	0～82
Conveyor speed	m/min	0～36
Vibrator speed	r/min	0~1470
Vibrator amplitude	mm	4
Screed heating		Electrical heating
Auger and conveyor control		Automatic Control by Ultrasonic Sensors
Automatic leveling control		Simulation control
Screed model	/	475
Type	/	Gas heating, vibration
Extension	/	Hydraulic
Width	m	2.5-6.0/7.0m
Vibrator speed	rpm	0-1470
